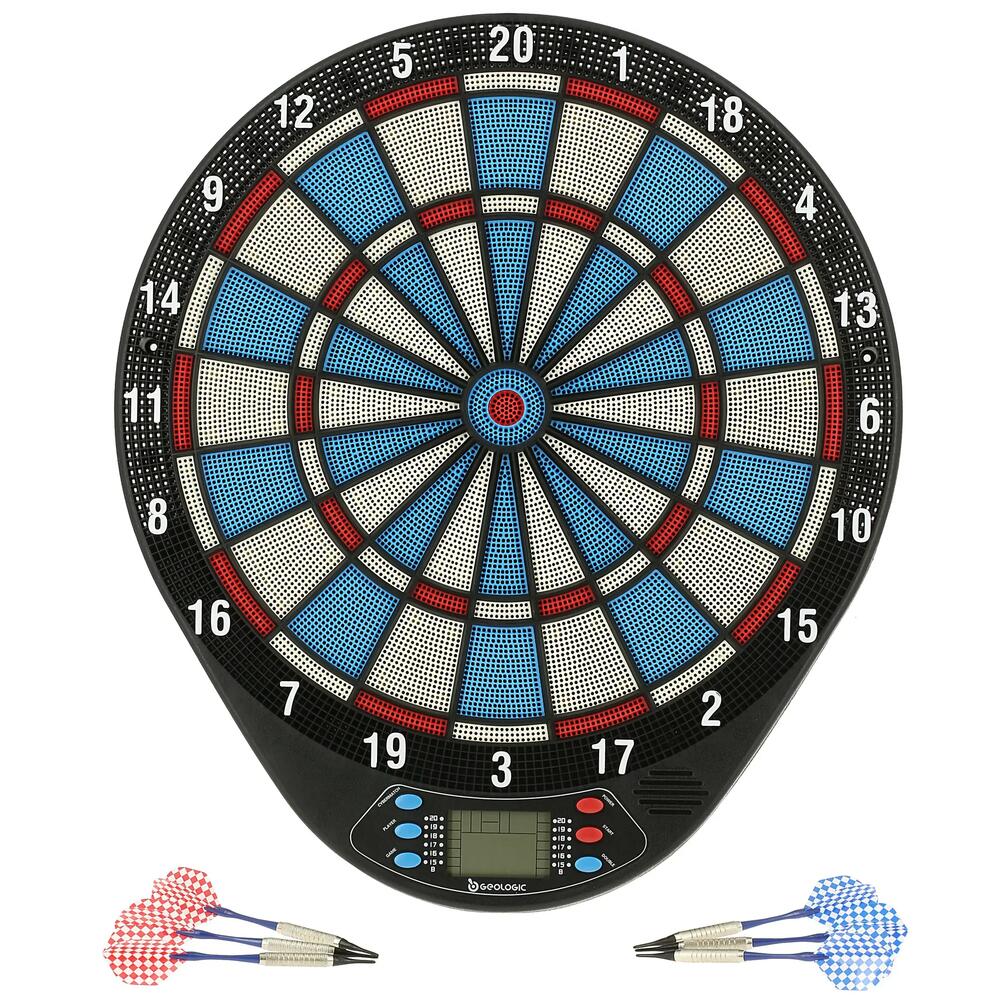

ELECTRONIC DARTBOARD ED110

Troubles with your dartboard ? Don't throw it away !

Concerned about our product environmental footprint, it appears now mandatory to give you the possibility to repare your products.

On this page, we guide you step by step to repare yourself your electronic dartboard for each trouble. You will see that it is not difficult and you will be proud of you.

First use

Packaging content

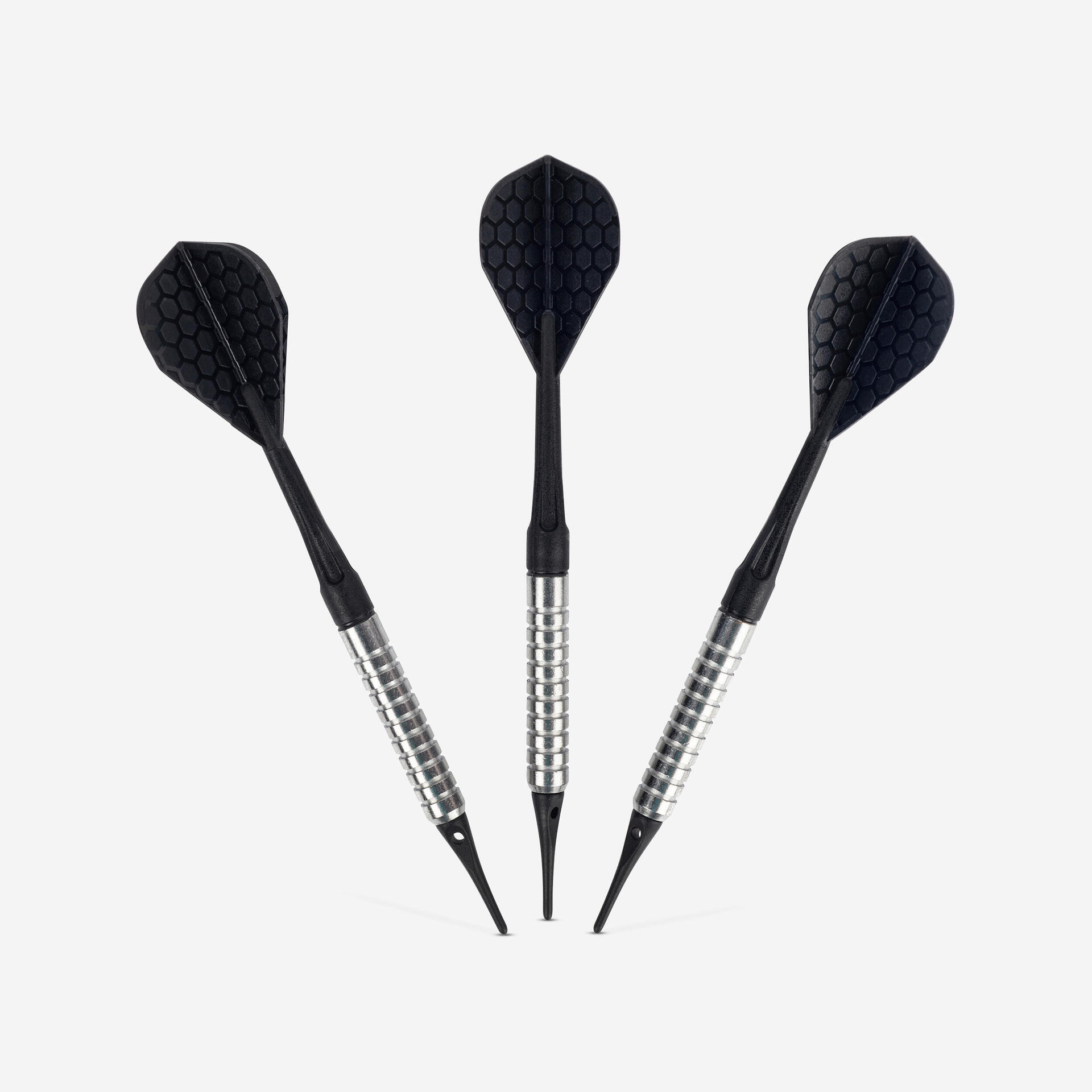

This Electronic dartboard is sold with 6 darts and some tips.

How to turn on your dartboard ?

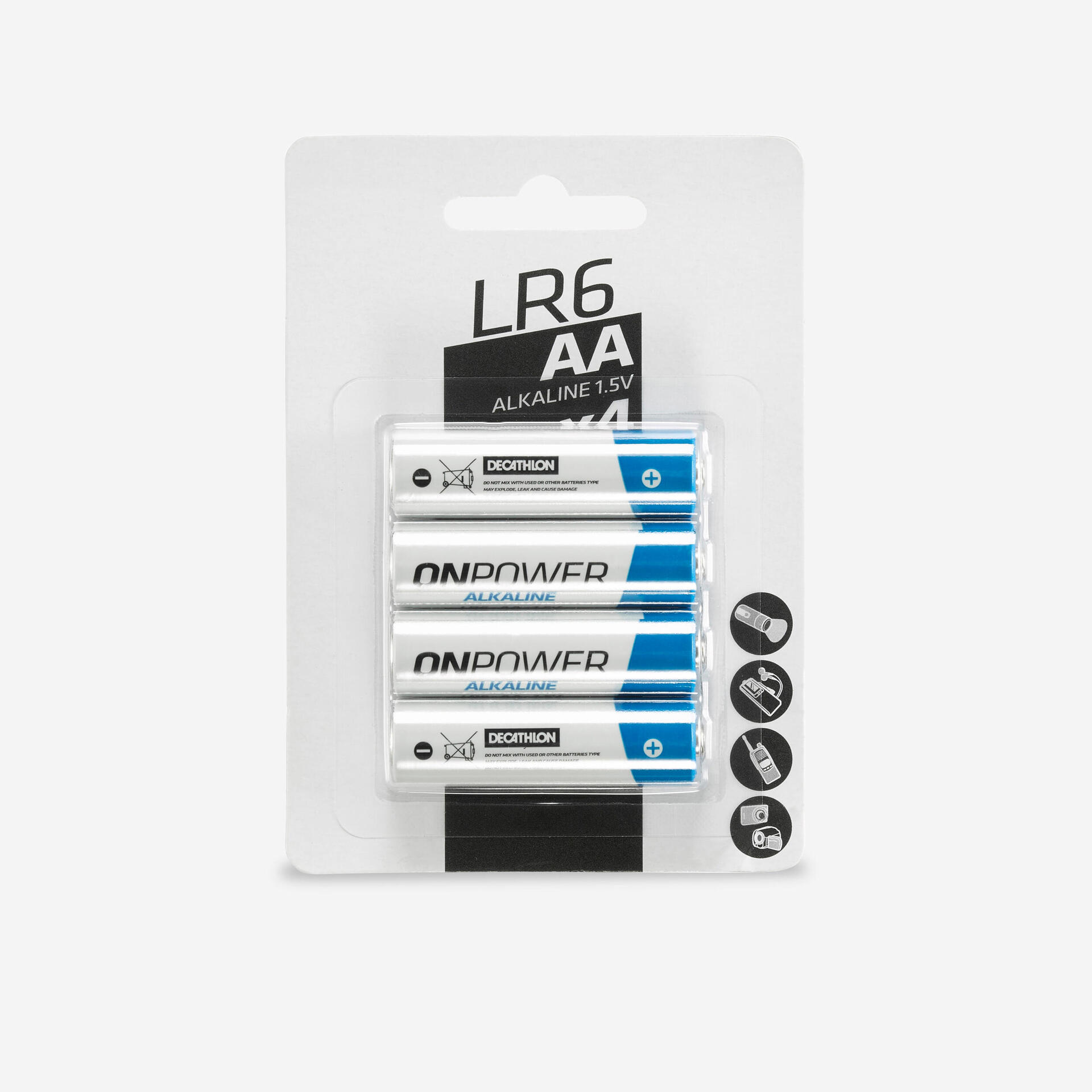

Put 3 batteries in the battery case (batteries are not included). Be carefull to respect polarity. You will find in the next section (5. SPARE PARTS) all the informations about battery reference.
Don't use rechargeable batteries.
Turn on the dartboard by pressing the power button if it has not automatically launched.

How to fix my electronic dartboard ?

Check this video :
Warning : Screws are not included.

Cible de fléchettes électronique ED110

Cible de fléchettes électronique ED110

To maintain

- Stock your Electronic Dartboard in a dry place : Don't let outside your dartboard even if it's under a cover. Electronic part could be oxidized and cause failure.
- Don't use rechargeable batteries : their voltage is sometimes to low.

Troubleshooting

Here you will find the Electronic Dartboard ED110 Troubleshooting File. By following the steps in this sheet, you can check if there is a possible problem with your product. If necessary, you will find in the next section (n°4. TO REPAIR) the tutorials indicated for the repair. You can also come to your local DECATHLON shop.

No more power (no display or sound)

How to control?
- Visually check that the battery connectors are not oxidized (white metal aspect).
- Insert ALKALINE 1.5V NON-RECHARGEABLE, NEW AND NON-EXPIRED batteries in the battery compartment, respecting the polarities
- Start the target by pressing the power button if it has not started automatically.
- The start-up music starts.
- Tap 3 times on the target and check that the screen remains on and does not turn off

How to fix?
If nothing happens: follow repair "Battery connection"

Problem with the lcd screen

How to control?
Switch off and restart the target.
The target successively displays 111, 222, 333 .... 999 on the screen.

How to fix?
If the screen is partially displayed: follow repair "Clean the contact between the screen and the electronic card"
If no display but sound when switched on: follow repair "Change of batteries"
If other: No solution

A button is blocked

How to control?
Target off, successively press Power, Bounce Out, Game, Player, Sound, Cybermatch, DoubleMiss, Start, Reset. Each time, an audible feedback must confirm the press on the button and when pressing the reset button, the target restarts

How to fix?
If a button is actually blocked, follow repair "Unblock a button"

A part or the full dartboard does not detect impacts

How to control?
After starting the target, it displays 111,222,333 ....
At this moment, type dry on a first segment (Simple 20 for example), a sound return should be heard.
Repeat the procedure on all segments

How to fix?
If the audible signal is absent for certain segments: Follow repair "Unblocking segments"
If the audible signal is absent for all segments: Follow repair "Mylar reconnection"
If other: No solution

There is a problem with the counting of points

Comment contrôler ?
A faire sur cible datant d'avant 2019/05 :
Démarrer une partie de 301 (Pour démarrer une partie, appuyer sur le bouton Game (G01) puis start.)
Choisissez un segments au hasard (par exemple le 18) et appuyer 3 fois dessus. L'écran affiche successivement le bon score (ici 18, 18, 18).
Appuyer sur Start / Next player pour passer au joueur suivant.
Répéter la procédure 5 fois d'affilé sans changer de segments

Comment réparer ?
La réparation n'est pas possible, il faut se rendre en magasin

To repair

The following repairs can be carried out on this product :

If your product cannot be repaired, take it to a WEEE collection point or any DECATHLON shop to optimize the recycling.

Repair 1 : darts repair

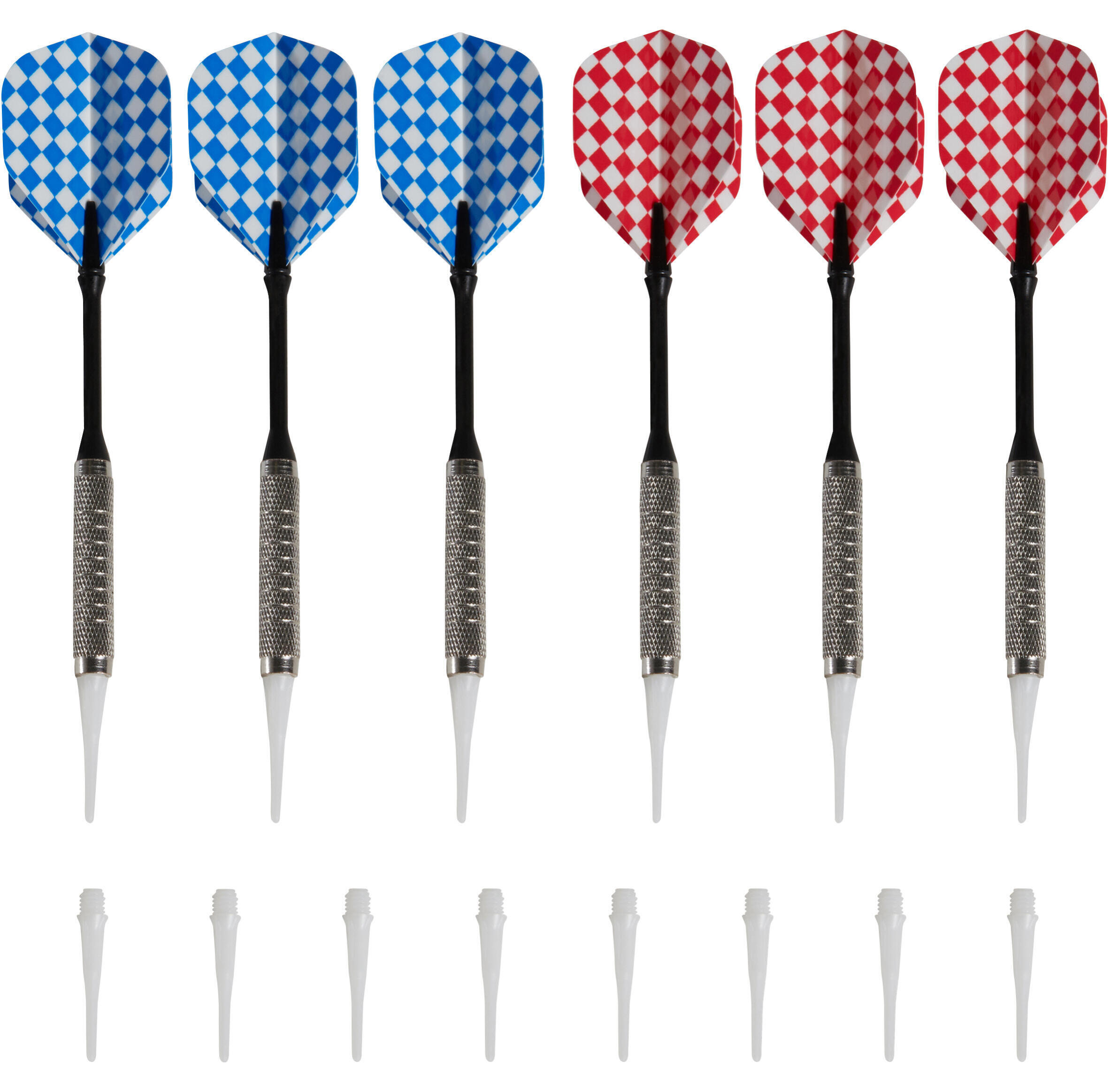

Your dart tips, shaft or barrel are broken ? Don't worry. You will find all our spare parts in the section : 5. SPARE PARTS.

JE REPARE
Repair 2 : battery replacement

Open the doors of your dartboard and put 3 batteries in the battery case (bottom left corner). Be carefull to respect polarity. You will find in the next section (5. SPARE PARTS) all the informations about battery reference.
Don't use rechargeable batteries.

Repair 3 : reconnecting mylar

Please watch this video :

Cible de fléchettes électronique ED110

Repair 4 : unlocking segments

This operation has to be repeat for each segment.

Cible de fléchettes électronique ED110

Repair 5 : battery connection

Please watch this video

Cible de fléchettes électronique ED110

Repair 6 : clean the connection between the screen and the electronic card

Please watch the video

Cible de fléchettes électronique ED110

Repair 7 : unlock button

Please watch the video

Cible de fléchettes électronique ED110

Spare parts

Here is the spare parts list for the Electronic Dartboard ED110 :
You can order spare parts on our decathlon.co.uk site (depending on availability) by clicking on one of the buttons below or contact the after-sales team at your usual DECATHLON store.

Cible de fléchettes électronique ED110

User guides

Need the product manual? Click download.
